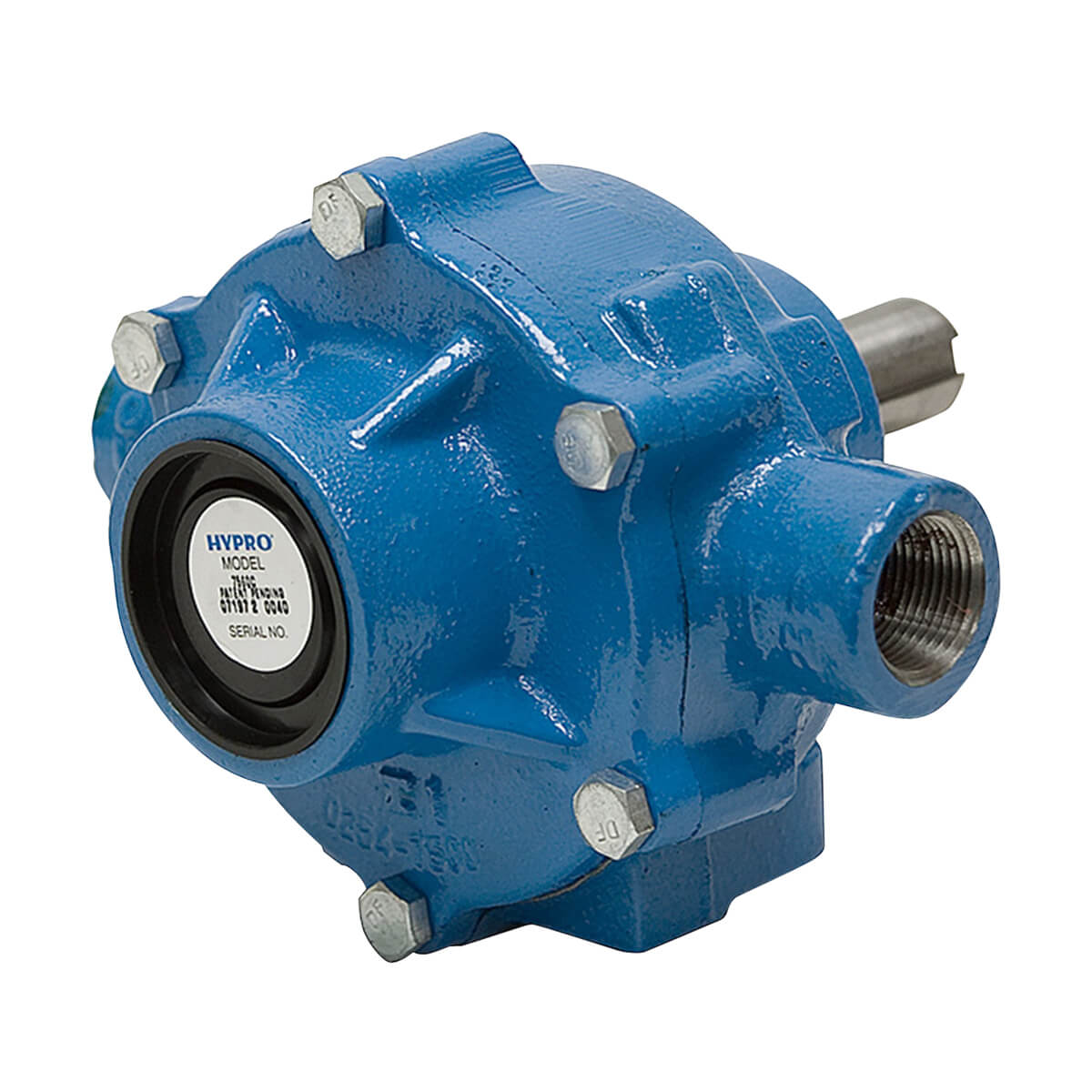

Hypro 7560C Roller Pump
MODEL #AG7560C | SKU #290982

Select location to view pricing

Write a Review
Set preferred store
Product Information

Hypro roller pumps are designed for agricultural and industrial spraying and transfer of a variety of fluids. These include insecticides, herbicides, emulsives, aromatic solvents, liquid fertilizers and many other liquids. The economical rotary-action roller principle requires no check valves while providing positive displacement characteristics with less friction and lower starting torque than other pumps.

  • Max flow: 22.5 gpm
  • Max pressure: 300 psi
  • Max rpm: 1000
  • Port sizes: 3/4" FNPT
  • Pump shaft rotation: CCW
  • Housing: Cast iron
  • Rotor: Cast iron
  • Roller quantity: 8
  • Shaft: 15/16" solid stainless steel
  • 12 gpm/45.4 lpm at 540 rpm
  • 22.5 gpm/85.2 lpm at 1000 rpm
  • Max fluid temperature: 140°F
  • Weight: 13 lbs
Specifications
Specifications
Type Hypro Roller Pump
Length 9.40 in
Width 7.50 in
Height 7.60 in
Net Weight 13.70 lb
Gross Weight 13.70 lb
Volume 535.80 cu in
